Drive-through access for every span.

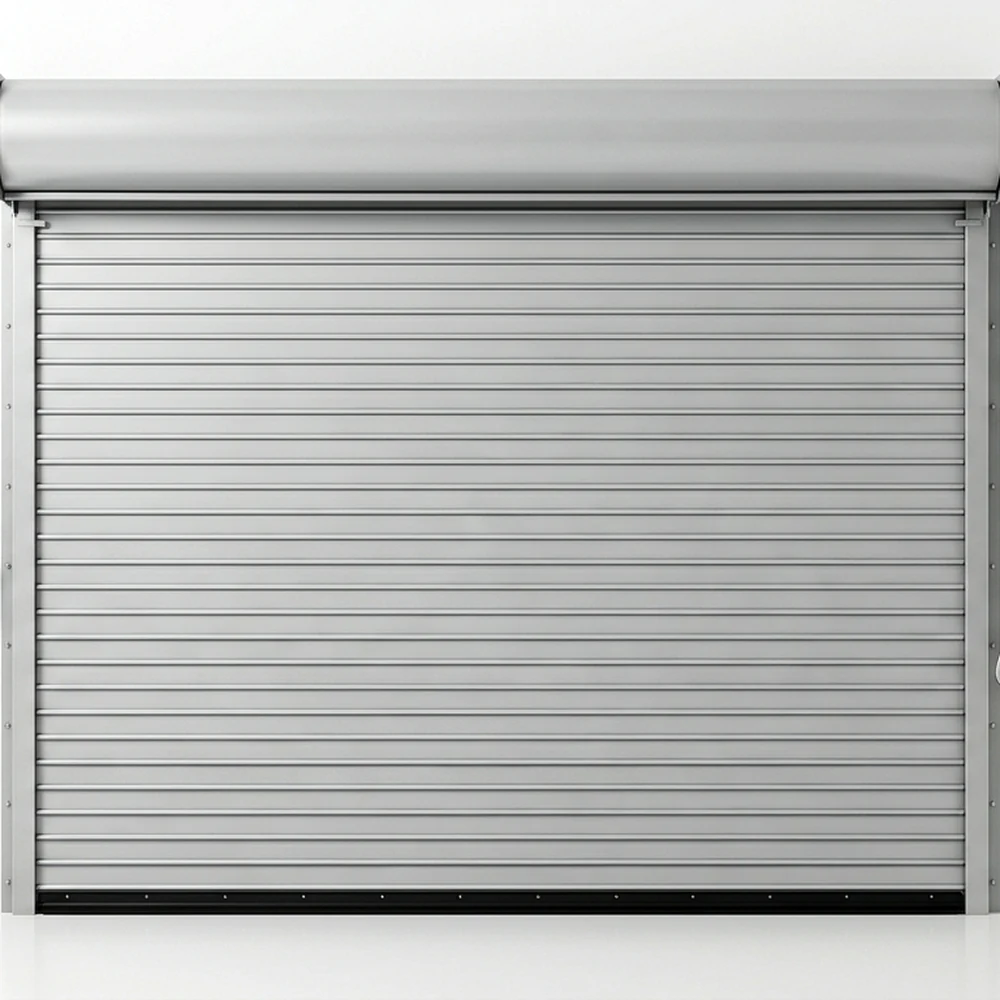

The Sun & Steel Commercial Bay Door is the back-of-span loading door on our Multi-Span greenhouse — an insulated roll-up curtain sized for vehicles, forklifts, and bulk pallet flows in a working production house. One bay door per span, fitted to the same Ø100 mm flanking main posts that frame the front-face auto sliders, so the structural envelope stays clean on both ends.
The 8'6" x 12 ft opening clears a standard 8 ft tractor or pallet jack with margin, and lands directly on the eave purlin so the roll-up coil tucks just under the gutter line. Insulated slats keep climate inside the house when the door is down, and the same Sun & Steel Mobile App that runs the front auto sliders raises and lowers the bay doors with end-of-travel switches.
Technical Specifications
Opening size: 8'6" wide (2.59 m) x 12 ft tall (3.66 m), full clear height to under-truss
Door type: Insulated commercial roll-up — coil, curtain, slat ribs
Frame: Mounts directly to the Multi-Span's 80x80 mm end-face eave purlin and the Ø100 mm door-flanking main posts. No supplementary jamb framing required.
Drive: Direct-drive motor with end-of-travel switches; optional through-beam safety sensor halts and reverses on obstruction
Control: Sun & Steel Mobile App (per-door schedule, after-hours lock-down, audit logs)
Manual override: Chain hoist standard, key-override lock available
Where it fits
Specified as a default add-on on the Multi-Span Standard and Heavy — one bay door per span on the back (loading-aisle) face. The configurator lets you remove or add bay doors on a per-span basis; spans without a bay door get full insulated end-wall cladding instead.
Features
Vehicle & pallet access
8'6" x 12 ft opening clears tractors, forklifts, and standard pallet flows.
Insulated curtain
Foam-cored slats hold climate when down, fold compactly into the coil drum when up.
Mobile-app controlled
Up / down and lock from the Sun & Steel Mobile App. Schedule the morning open / evening close per door per day.
Safety-sensor ready
Optional through-beam sensor reverses the door on a person, vehicle, or pallet in the opening.
Audit trail
Every cycle (open, close, manual override) writes a timestamped log entry.
Egress-independent
The corner emergency personnel doors operate mechanically regardless of bay door power or app state.
Common Applications
- Commercial vegetable production
- Light-dep cannabis facilities
- Nursery / propagation transfer routes
- Substrate, fertilizer, or harvest cart-out
- Forklift access for grow-media bulk delivery
