One extinguisher, three fire classes.

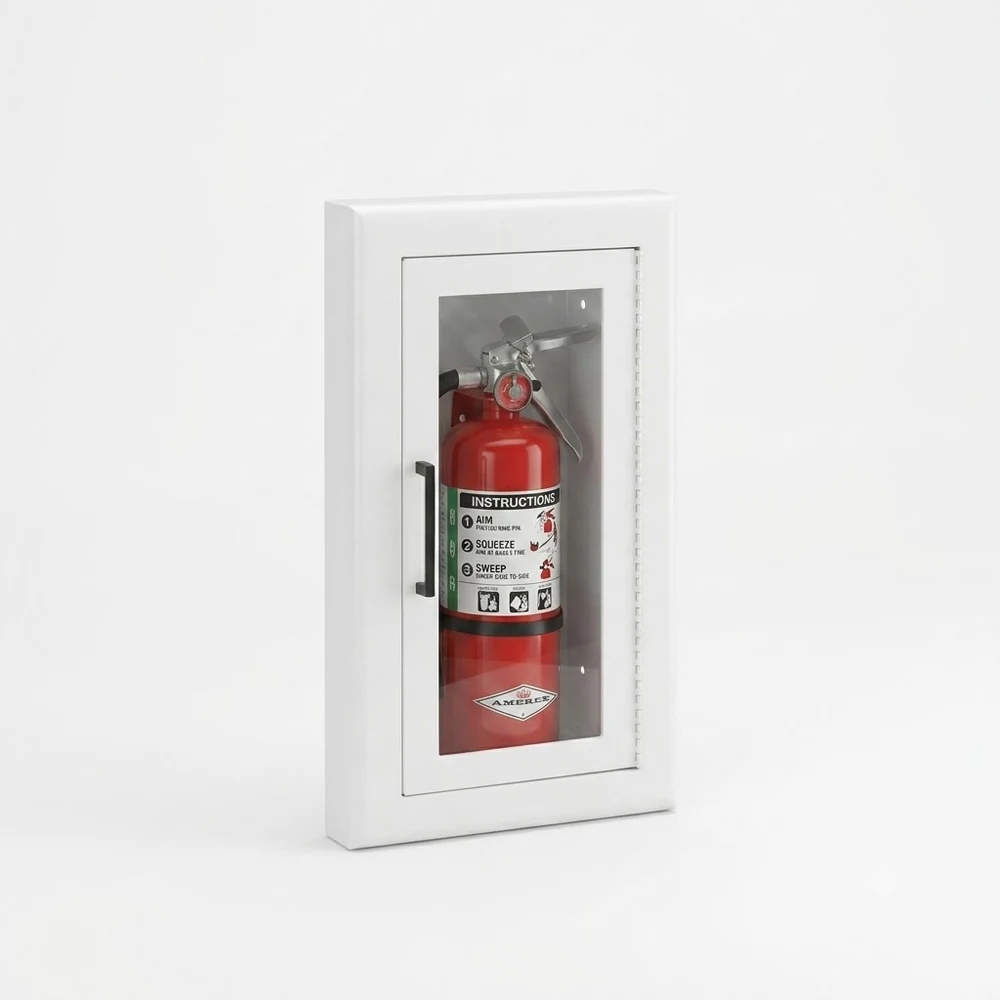

The Sun & Steel ABC Fire Extinguisher is a UL-listed 5-lb dry-chemical extinguisher rated for the three fire classes typically encountered in a working production greenhouse:
- Class A — ordinary combustibles (paper, fabric, growing media, plant matter)
- Class B — flammable liquids (fertilizer concentrates, solvents, fuel for backup generators)
- Class C — energized electrical equipment (climate cabinets, control panels, lighting circuits)
Each unit ships with a wall-mount bracket sized to the standard 2 in side-wall girt of our Multi-Span, so the extinguisher tucks against the cladding at every emergency-door corner and at two interior wall-mount stations.
What's included
- 1 x 5-lb ABC dry-chemical extinguisher, UL-listed and pressure-gauge equipped
- 1 x heavy-gauge steel wall-mount bracket with 2 in girt clamps
- 1 x certification tag and inspection log
Technical Specifications
Agent: ABC monoammonium-phosphate dry chemical
Capacity: 5 lb (2.27 kg)
Rating: 3-A:40-B:C UL-listed
Discharge range: 12 to 18 ft
Discharge time: 13 to 15 seconds
Operating temperature: -40 to 49 degrees C
Pressure gauge: Visible green-zone indicator
Mounting: Heavy-gauge steel bracket, fits the 2 in side-wall girt
Service: 12-year service life, annual visual inspection
Where it fits
Defaults to qty 4 on every Sun & Steel Multi-Span — one extinguisher at each of the two emergency-door corners (diagonally opposed, code-egress travel-distance coverage) plus two more at interior wall-mount stations on the long side walls so no working position is more than the code-required walk distance from a unit.
Features
Multi-class rating
One extinguisher handles ordinary combustibles, flammable liquids, and electrical fires.
UL-listed
3-A:40-B:C rating accepted by every fire-code authority in Canada and the US.
Visible pressure gauge
Green-zone indicator means a glance tells you the unit is charged and ready.
Wall-mount bracket included
Factory-fitted clamps slide onto the Multi-Span's 2 in cladding girt — no drilling, no separate hardware.
Built for the climate range
Rated -40 to 49 degrees C, so the extinguisher works in the unheated months and through summer-day greenhouse peaks alike.
Common Applications
- Code-required commercial greenhouse fire safety
- Wall-mount stations beside every emergency egress door
- Interior side-wall stations under the side-wall main posts
- Climate cabinet / control panel adjacency for Class C electrical fires
