Light Deprivation Mini
Residential Greenhouses

Light Deprivation Mini

from $3,779Configured to your operation — build yours in the 3D designer for an exact price, then add it to your cart.

Light Dep Mini

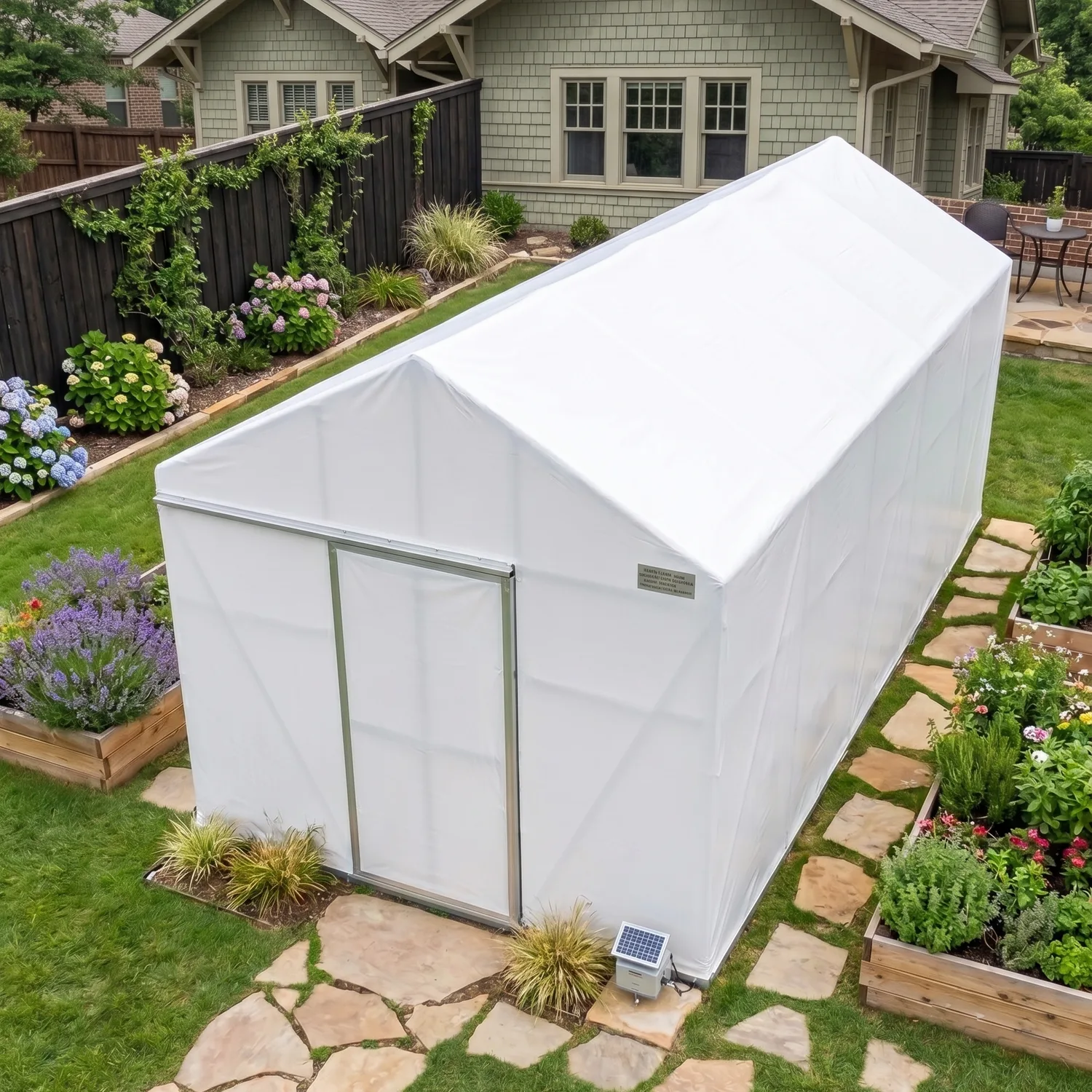

The Sun & Steel Light Dep Mini brings full photoperiod control to a backyard footprint. At 8 feet wide, 10 feet at the peak, and 7 feet at the sidewall, it wraps a fully-trussed gothic steel frame in a light-tight white blackout tarp instead of clear film — so you dictate the day length on a small plot, with genuine commercial-grade construction underneath: a galvanized bottom cord, W-diagonal, and return pipe form a real truss system on every interior arch.

The Standard runs 4-ft-on-centre gothic arches, 3 purlin runs, and a ground-driven anchor system with no concrete required. The Heavy tightens the arch spacing to 3 ft on centre, adding roughly 33% more structural capacity in the same footprint — the right call for colder climates and Northern winters. Available in 12 ft, 24 ft, and 36 ft lengths; the reference build below is the 24 ft length (7 Standard / 9 Heavy arches). Every kit ships with the white blackout tarp cover and aluminum channel throughout.

Available builds
Frame
Qty
Total
$4,199

Lite — where snow is rare and light  ·  Standard — built for frequent and moderate snow loads  ·  Heavy — tightest arch spacing and heavier gauge for the deepest snow loads

Talk to an expert

Built to your site

Bay spacing, height and length, all configurable.

Standard and Heavy frames in adjustable lengths and bay spacings. Stamped engineering, exact pipe and gauge schedules ship with the engineered order — not the public configurator.

Reference specifications shown for the Light Dep Mini (Standard) build — framing scales proportionally across every length below.

Key features

  • 7 gothic arches — spaced 4 ft apart — gothic arch profile sheds snow naturally
  • 10-foot peak height with 7-foot sidewall — compact footprint, full standing headroom
  • 8-foot clear-span interior width — no interior columns, full usable floor space
  • Bottom cord, W-diagonal, and return pipe on every interior arch — genuine truss system, not a bare hoop
  • X-bracing on both end bays — lateral wind load resistance at the gable walls
  • white light-blocking blackout tarp — roof cover, end wall panels, and side wall panels all included
  • Aluminum tarp channel system with wiggle wire for fast, tool-free film installation and replacement
  • Ground-driven anchor system — no concrete required
  • Galvanized steel frame throughout — full BOM and as-built kg are confirmed in the configurator at order time

Specifications

Overall Length
24 ft (approx. 7.3 m) — reference build; also available at 12 ft and 36 ft
Span Width
8 ft (approx. 2.4 m)
Number of Arches
7, spaced 4 ft on centre (at the 24 ft reference build)
Peak Height
10 ft (approx. 3.0 m)
Sidewall Height
7 ft (approx. 2.1 m)
Arch Profile
Gothic curve — one-piece bent arch half per side
Steel Weight
Varies by length — confirmed at the configurator BOM
